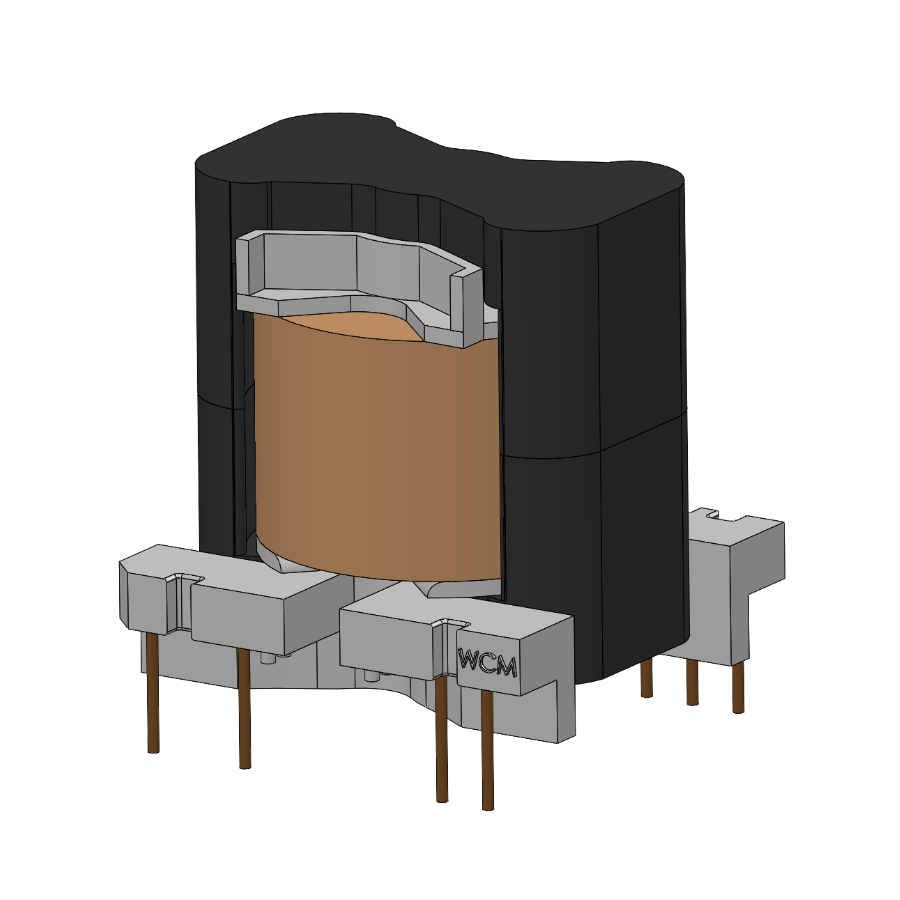

WCM420-10, 20, 30, 40 Medium Power SMPS Switch Mode Transformers

This new series was designed for applications where board space is at a minimum. Featuring a finite element optimized core geometry to equalize flux distribution throughout the core cross section, the WCM420-10, -20, -30 and -40 core and bobbin sets feature outstanding power density at power levels up to 5 kW. This series is also available with two core material options, one for traditional SMPS frequencies up to 500 kHz and a new low permeability MnZn material with very low loss at frequencies over 500 kHz. As usual with WCM geometries, standoff between core and bobbin has creepage and clearance values which will meet the most stringent medical device standards. This series puts out 500 watts to 5,000 watts of power.

GET A CUSTOM QUOTE
Download Product Sheet

Interested in ordering cores and bobbins?

SEE OUR DESIGN KITS >

Output power vs frequency of operation (watts)

Size Code Frequency 100 kHz 200 kHz 400 kHz 600 kHz 1 MHz
WCM420-40 Power Rating 2700 3400 4000 4700 5600
WCM420-30 Power Rating 1800 2400 2800 3300 4000
WCM420-20 Power Rating 1200 1800 2200 2600 3000
WCM420-10 Power Rating 500 660 850 1100 1500

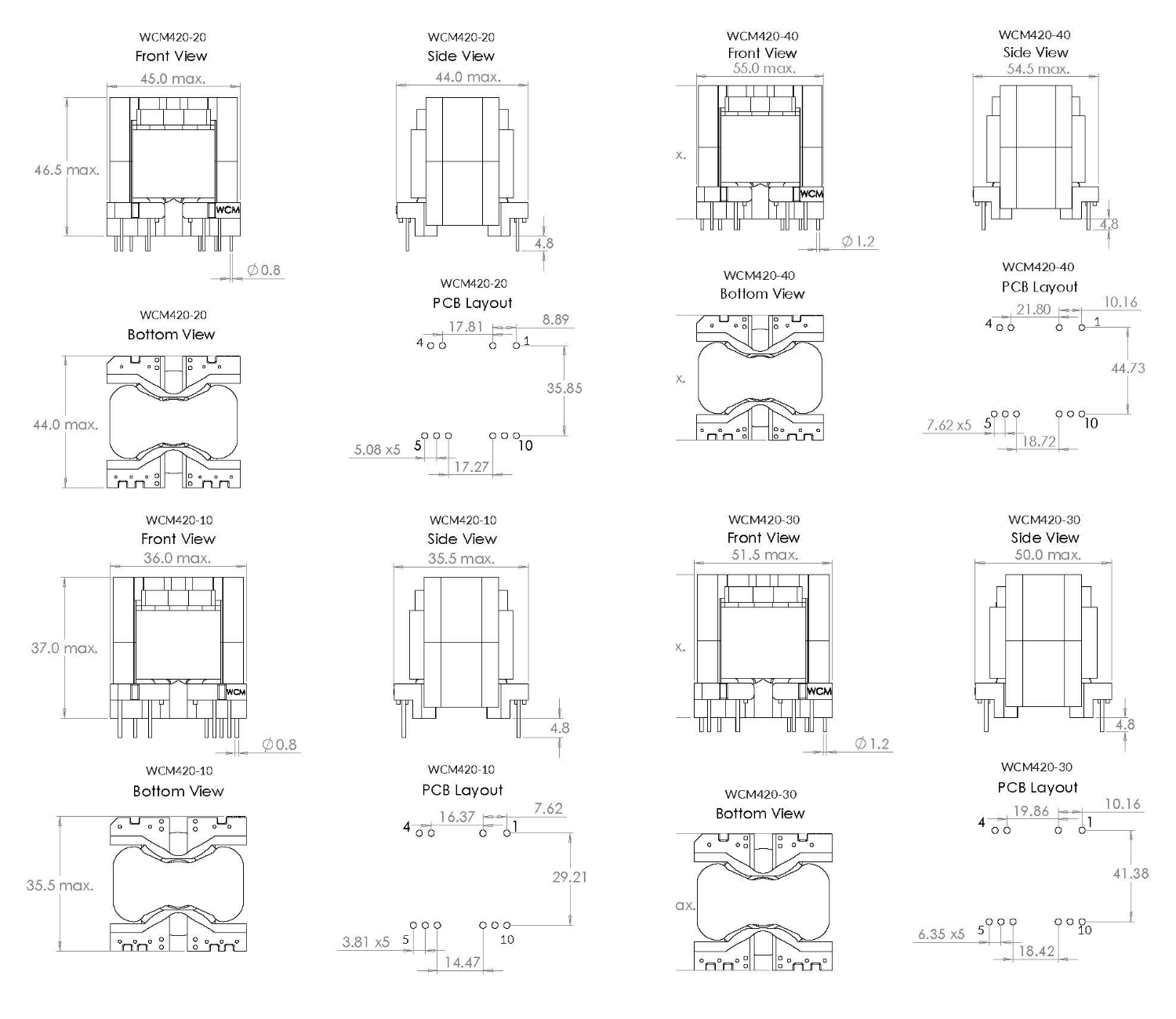

Engineering data

Size Code AL(nH/N2) Ae Core Area (mm2) Le magnetic path length (mm) Ve core volume (mm3) Wa bobbin winding area (mm2) WaAc Core area winding area (mm4) Bobbin window width (mm) Bobbin window height (mm) mean length per turn (mm) Core material 25KHZ to 500KHZ Core material 500KHZ to 1000KHZ
WCM410-40 10384 267.0 100.2 42335 269.2 74302 28.2 9.6 100.1 WCM-F200 WCM-FM400
WCM410-30 9329 223.2 90.2 30958 220.5 49224 25.2 8.8 91.7 WCM-F200 WCM-FM400
WCM410-20 8218 173.9 79.7 21285 169.3 29442 22.2 7.6 80.6 WCM-F200 WCM-FM400
WCM410-10 6414 107.7 63.3 10625 103.3 11123 17.5 5.9 63.8 WCM-F200 WCM-FM400
Download Product Sheet

Parameter Your Requirement
Input Voltage
Output Voltage
Power
Frequency
Topology
Isolation
Winding Schematic

Product Description

This new series was designed for applications where board space is at a minimum. Featuring a finite element optimized core geometry to equalize flux distribution throughout the core cross section, the WCM420-10, -20, -30 and -40 core and bobbin sets feature outstanding power density at power levels up to 5 kW. This series is also available with two core material options, one for traditional SMPS frequencies up to 500 kHz and a new low permeability MnZn material with very low loss at frequencies over 500 kHz. As usual with WCM geometries, standoff between core and bobbin has creepage and clearance values which will meet the most stringent medical device standards. This series puts out 500 watts to 5,000 watts of power.
