WCM308 Series Shaped Foil SMD Power Inductor

Available with patented Foil Technology for high ripple, high frequency applications.

WCM308 series power inductors deliver very high performance in a small, light, low cost package. They have been designed to handle very high DC currents and high AC ripple currents from 60Hz up to 500kHz. These inductors offer exceptional reliability with an operating temperature rating of 200C and they can be ordered using West Coast Magnetics’ SHAPED FOIL TECHNOLOGYTM.

GET A CUSTOM QUOTE
Download Product Sheet
Product Code Inductance µH DCR mOHms Current Rating* Irms 40C Current Rating* Irms 80C Current Rating* Irms 120C
WCM308-01 193.4 14.72 20 28 34
WCM308-02 154.8 11.29 22 32 39
WCM308-03 128.7 9.01 25 36 44
WCM308-04 90.5 6.04 31 44 54
WCM308-05 64.8 4.06 38 53 66
WCM308-06 59.0 3.62 40 57 70
WCM308-07 48.3 2.94 44 63 77
WCM308-08 43.4 2.58 47 67 82
WCM308-09 30.1 1.84 55 79 97
WCM308-10 26.2 1.51 62 88 108
WCM308-11 19.3 1.15 70 101 124
WCM308-12 16.2 0.95 78 111 136
WCM308-13 13.4 0.75 88 125 152
WCM308-14 10.8 0.65 95 134 165
WCM308-15 08.6 0.50 108 152 188



*Current Rating:
The current values in this table are the approximate Rms current values which will lead to the temperature rise shown at the top of each column. The conditions under which the RMS current value in the table was determined are:

  1. convective heat transfer with no outside cooling,
  2. no core or AC winding losses, effectively a DC current is applied.

For ripple currents exceeding 2% additional margin must be allowed for core and AC copper losses.

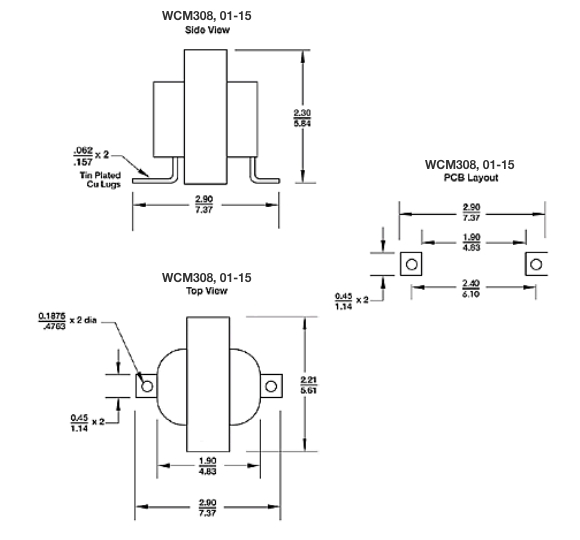

308view_sm





Product/Code W H L X1 X2
WCM308 2.85/7.24 3.0/7.62 3.05/7.75 1.70″/4.32 2.10″/5.33



Dimensions: Inches/mm

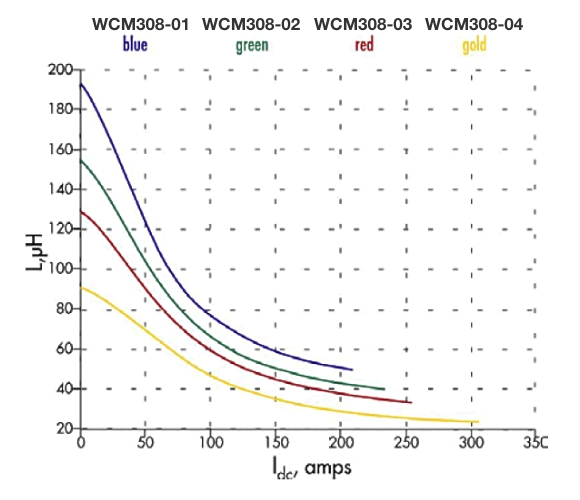

WCM308-01 to WCM308-04

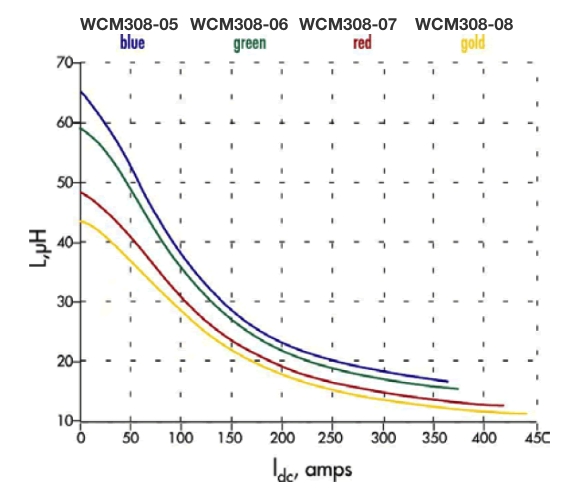

WCM308-05 to WCM308-08

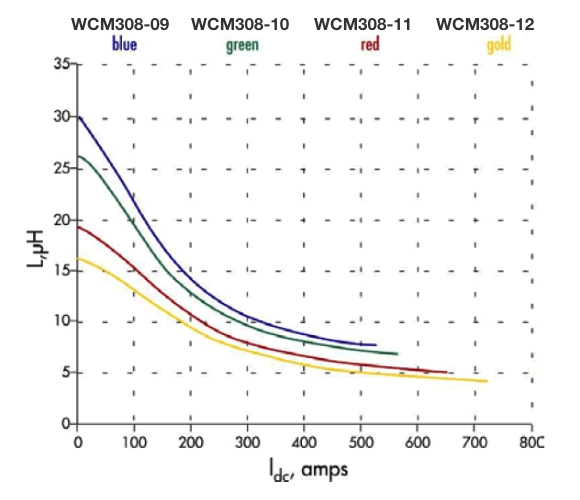

WCM308-09 to WCM308-12

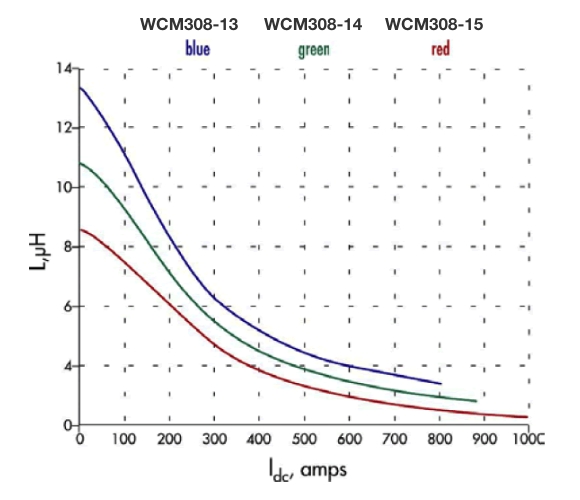

WCM308-13 to WCM308-15



Product Description

Available with patented Foil Technology for high ripple, high frequency applications.

WCM308 series power inductors deliver very high performance in a small, light, low cost package. They have been designed to handle very high DC currents and high AC ripple currents from 60Hz up to 500kHz. These inductors offer exceptional reliability with an operating temperature rating of 200C and they can be ordered using West Coast Magnetics’ SHAPED FOIL TECHNOLOGYTM.
