WCM410-50, 60, 70, 88 series achieves 50% more power density than other geometries currently available on the market, without sacrificing isolation. The WCM410 platform is configured to your custom specifications, including bobbin/core size, power output and winding configuration. The compact custom core and bobbins are also suitable for safe UL/CSA/VDE coupling with medical grade isolation standards. This series puts out 500 watts to 5,000 watts of power.
Interested in ordering cores and bobbins?
SEE OUR DESIGN KITS >Output power vs frequency of operation (watts)
| Size Code | Frequency | 25 kHz | 50 kHz | 100 kHz | 200 kHz | 500 kHz | 1 MHZ |
|---|---|---|---|---|---|---|---|
| WCM410-88 | Power Rating | 1.8 kW | 2.7 kW | 3.7 kW | 4.4 kW | 5.1 kW | – |
| WCM410-70 | Power Rating | 1.1 kW | 1.8 kW | 2.4 kW | 2.8 kW | 3.2 kW | – |
| WCM410-60 | Power Rating | – | – | 1.0 kW | 1.2 kW | 1.9 kW | 2.2 kW |
| WCM410-50 | Power Rating | – | – | 550 W | 660 W | 1.0 kW | 1.2 kW |

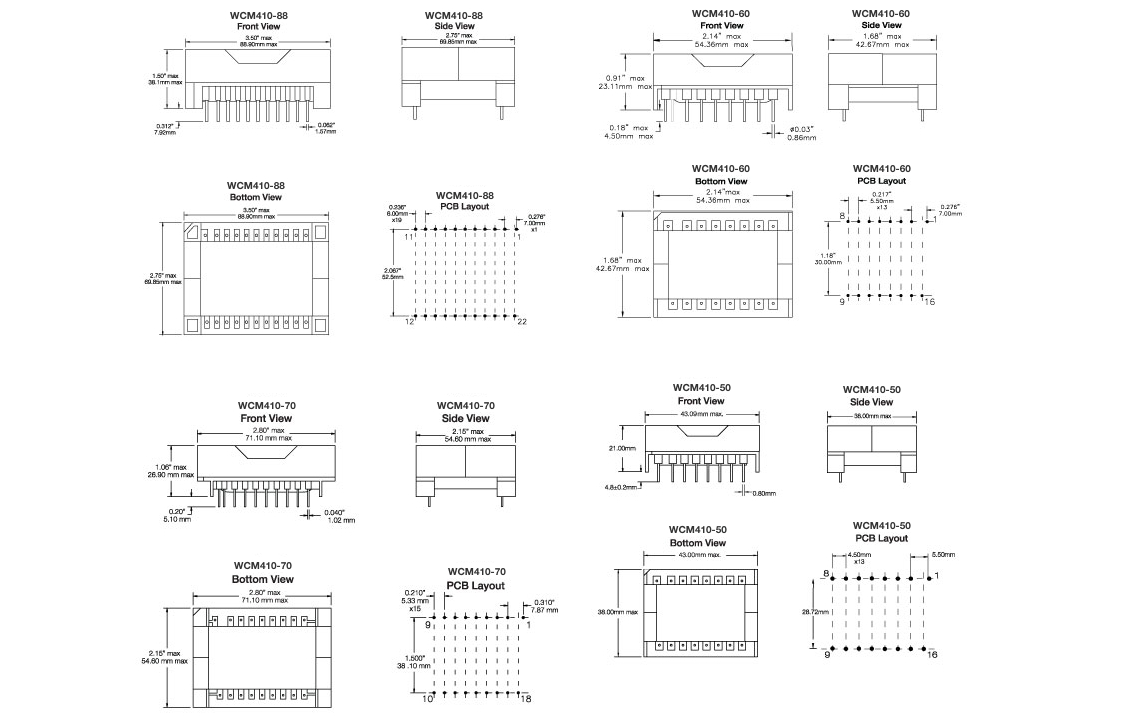

Engineering data
| Size Code | Al (ungapped, nH/T2) | Ae Core Area (mm2) | Le magnetic path length (mm) | Ve core volume (mm3) | Wa bobbin winding area (mm2) | WaAc Core area winding area (mm4) | Bobbin window width (mm) | Bobbin window height (mm) | mean length per turn (mm) | Core material |
|---|---|---|---|---|---|---|---|---|---|---|
| WCM410-88 | 5500 | 404.0 | 169.4 | 69,292 | 385.2 | 155,765 | 45.00 | 8.56 | 140.9 | WCM-F100 |
| WCM410-70 | 4400 | 245.0 | 129.0 | 31,600 | 201.6 | 49,392 | 31.75 | 6.35 | 108.0 | WCM-F100 |
| WCM410-60 | 3600 | 158.6 | 102.6 | 15,755 | 137.0 | 21,728 | 26.50 | 5.17 | 86.1 | WCM-F300 |
| WCM410-50 | 2100 | 106.7 | 89.2 | 9,913 | 112.1 | 11,958 | 24.00 | 4.67 | 68.0 | WCM-F300 |
WCM410-50, 60, 70, 88 series achieves 50% more power density than other geometries currently available on the market, without sacrificing isolation. The WCM410 platform is configured to your custom specifications, including bobbin/core size, power output and winding configuration. The compact custom core and bobbins are also suitable for safe UL/CSA/VDE coupling with medical grade isolation standards. This series puts out 500 watts to 5,000 watts of power.
