Power Inductors (WCM320 Series)

WCM’s 320 series inductors are designed for use in buck boost (differential) circuits. Using an improved generation of Shaped Foil Technology, this inductor series has lower core and winding losses than competing products, especially at frequencies over 10 kHz and ripple current magnitudes of 5% and higher. The 320 series is an industry leading low cost, high performance inductor

Product CodeInductance µHDCR (mΩ)idc amps INPUTSchematic
WCM320-01228.916.5012.00A
WCM320-02156.09.8016.00A
WCM320-0374.14.7124.00A
WCM320-0457.83.4232.0A
WCM320-0536.82.4140.00B
WCM320-0625.82.0648.00B
WCM320-0716.21.0356.00B

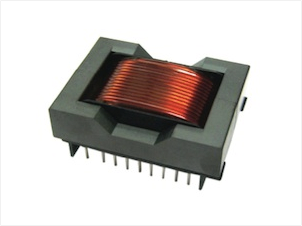

310view_sm



Product/CodeWHL
3202.15/54.6 max1.06/26.9 max2.80/71.1 max

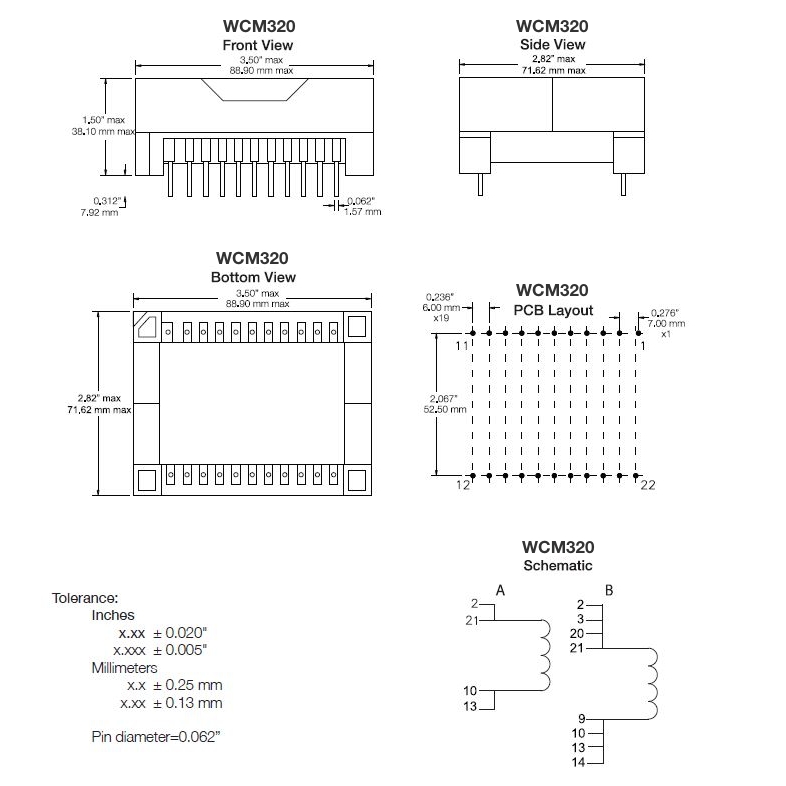

Dimensions: Inches/mm

320 1-4








320 5-8

Product Description

WCM’s 320 series inductors are designed for use in buck boost (differential) circuits. Using an improved generation of Shaped Foil Technology, this inductor series has lower core and winding losses than competing products, especially at frequencies over 10 kHz and ripple current magnitudes of 5% and higher. The 320 series is an industry leading low cost, high performance inductor
