Available with patented Foil Technology for high ripple, high frequency applications.
WCM306 series high current inductors are designed to meet the most demanding requirements. These inductors will support high levels of ripple at frequencies up to 500 kHz. WCM306 series power inductors are conservatively rated from 16 to 75 Amps DC or Rms on a continuous duty basis. Inductor values range from 26 to 590 microhenries.

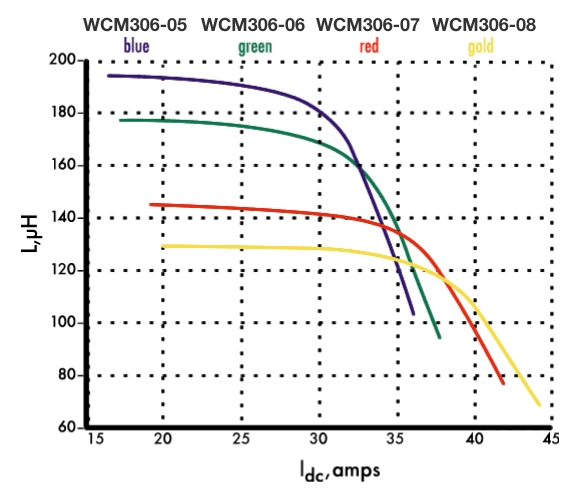

| Part Number | Inductance µH | DCR mOHms | Irms amps INPUT | Weight (kg) |
|---|---|---|---|---|
| WCM306-01 | 582 | 15.98 | 15.0 | 1.0 |
| WCM306-02 | 494 | 12.61 | 17.0 | 1.0 |
| WCM306-03 | 388 | 9.77 | 19-.0 | 1.0 |
| WCM306-04 | 273 | 6.56 | 23.0 | 1.0 |
| WCM306-05 | 195 | 4.40 | 27.0 | 1.0 |
| WCM306-06 | 178 | 3.92 | 28.0 | 1.0 |
| WCM306-07 | 146 | 3.20 | 31.0 | 1.0 |
| WCM306-08 | 131 | 2.80 | 33.0 | 1.0 |
| WCM306-09 | 103 | 2.14 | 37.0 | 1.0 |
| WCM306-10 | 91 | 1.89 | 39.0 | 1.0 |
| WCM306-11 | 79 | 1.63 | 42.0 | 1.0 |
| WCM306-12 | 58 | 1.25 | 48.0 | 1.0 |
| WCM306-13 | 49 | 1.03 | 55.0 | 1.0 |
| WCM306-14 | 40 | 0.81 | 58.0 | 1.0 |
| WCM306-15 | 33 | 0.70 | 66.0 | 1.0 |
| WCM306-16 | 26 | 0.55 | 74.0 | 1.0 |
| Part Number | W | H | L | X1 | X2 |
|---|---|---|---|---|---|
| WCM306 | 2.85/7.24 | 3.20/8.13 | 3.05/7.75 | 1.70/4.32 | 2.10/5.33 |
Dimensions: Inches/cm
