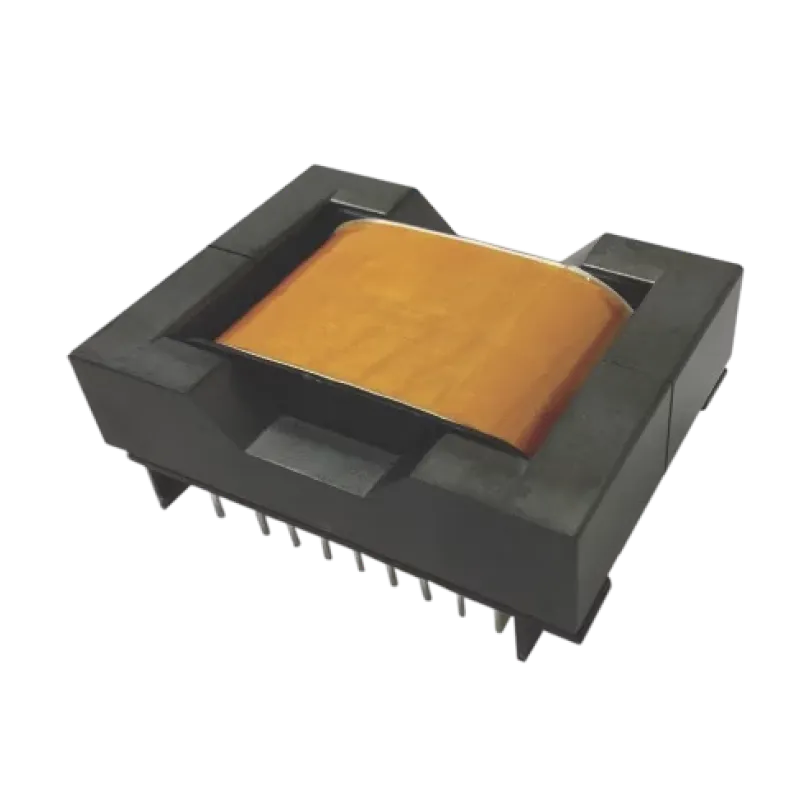

Compact Shaped Foil Inductor (WCM318 Series)

WCM’s 318 series inductors are designed for use in buck boost (differential) circuits. Using an improved generation of Shaped Foil Technology, this inductor series has lower core and winding losses than competing products, especially at frequencies over 10 kHz and ripple current magnitudes of 5% and higher. The 318 series is an industry leading low cost, high performance inductor.

**patent pending on the winding technology used in this design.

Product CodeInductance µHDCR (mΩ)idc amps INPUTSchematic
WCM318-01112.728.876.00A
WCM318-0251.810.4614.00A
WCM318-0330.56.1319.00A
WCM318-0414.73.0723.00A
WCM318-0511.62.3225.00A
WCM318-066.61.1440.00B
WCM318-074.60.7445.00B
WCM318-083.00.4655.00B

310view_sm



Product/CodeWHL

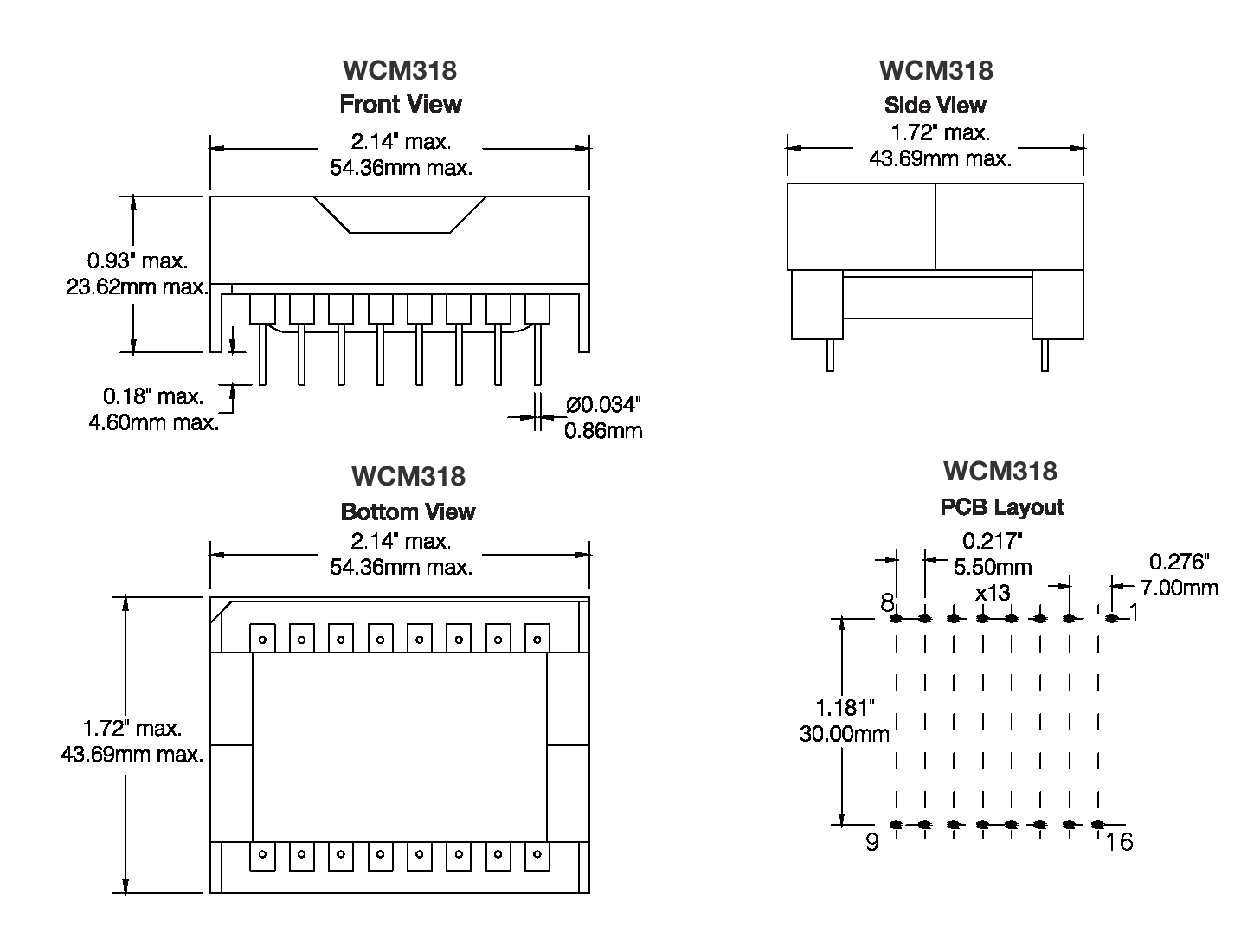

Dimensions: Inches/mm

318 1-4








318 5-8




Product Description

WCM’s 318 series inductors are designed for use in buck boost (differential) circuits. Using an improved generation of Shaped Foil Technology, this inductor series has lower core and winding losses than competing products, especially at frequencies over 10 kHz and ripple current magnitudes of 5% and higher. The 318 series is an industry leading low cost, high performance inductor.

**patent pending on the winding technology used in this design.
