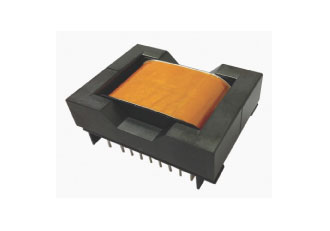

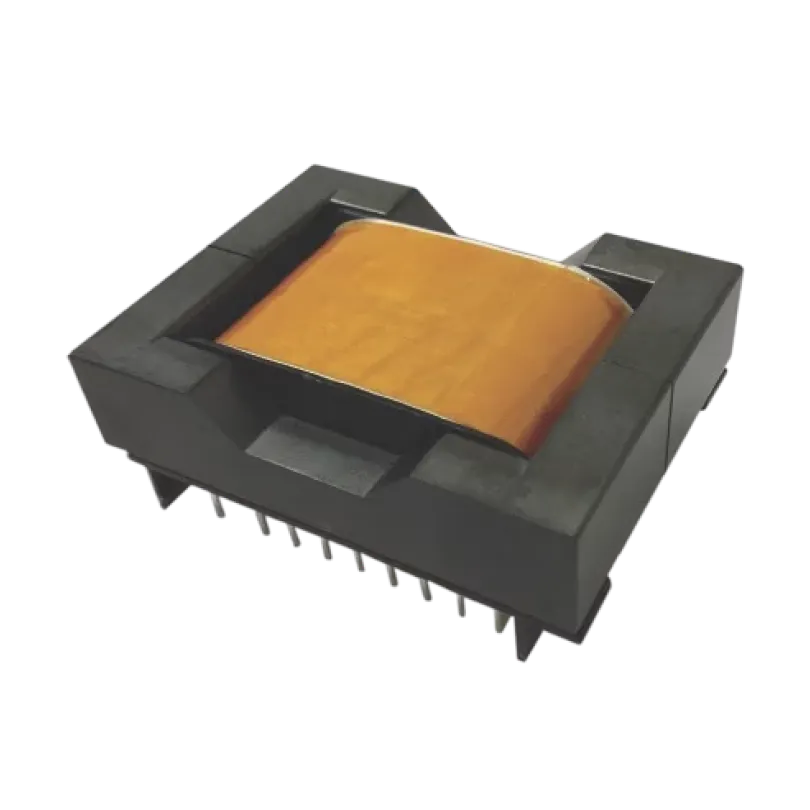

WCM317 Series Compact Shaped Foil Power Inductor

WCM317 series inductors are designed for use in buck boost (differential) circuits. Using an improved generation of Shaped Foil Technology, this inductor series has lower core and winding losses than competing products, especially at frequencies over 10 kHz and ripple current magnitudes of 5% and higher. The WCM317 series is an industry leading low cost, high performance inductor.

**patent pending on the winding technology used in this design.

Product Code Inductance µH DCR (mΩ) idc amps INPUT Schematic
WCM317-01 63.7 19.75 9.00 A
WCM317-02 29.5 7.33 15.00 A
WCM317-03 19.0 4.50 20.00 A
WCM317-04 8.5 2.25 29.00 A
WCM317-05 6.6 1.29 31.00 B
WCM317-06 4.8 0.88 35.00 B
WCM317-07 3.3 0.57 43.00 B
WCM317-08 2.1 0.36 55.00 B

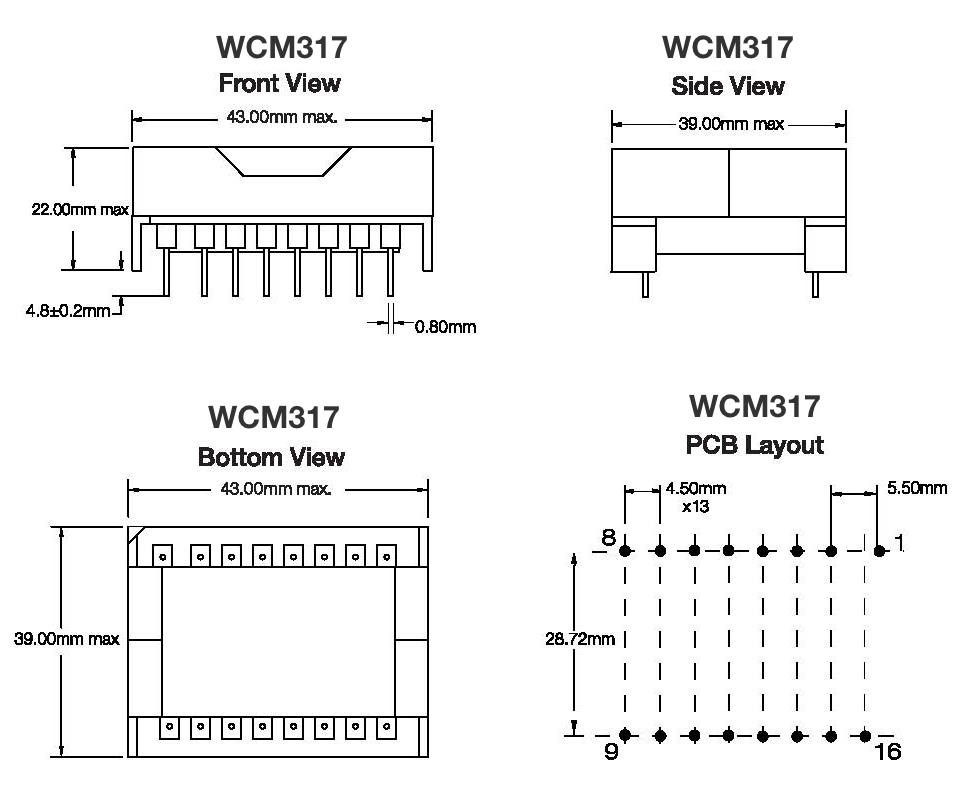

310view_sm

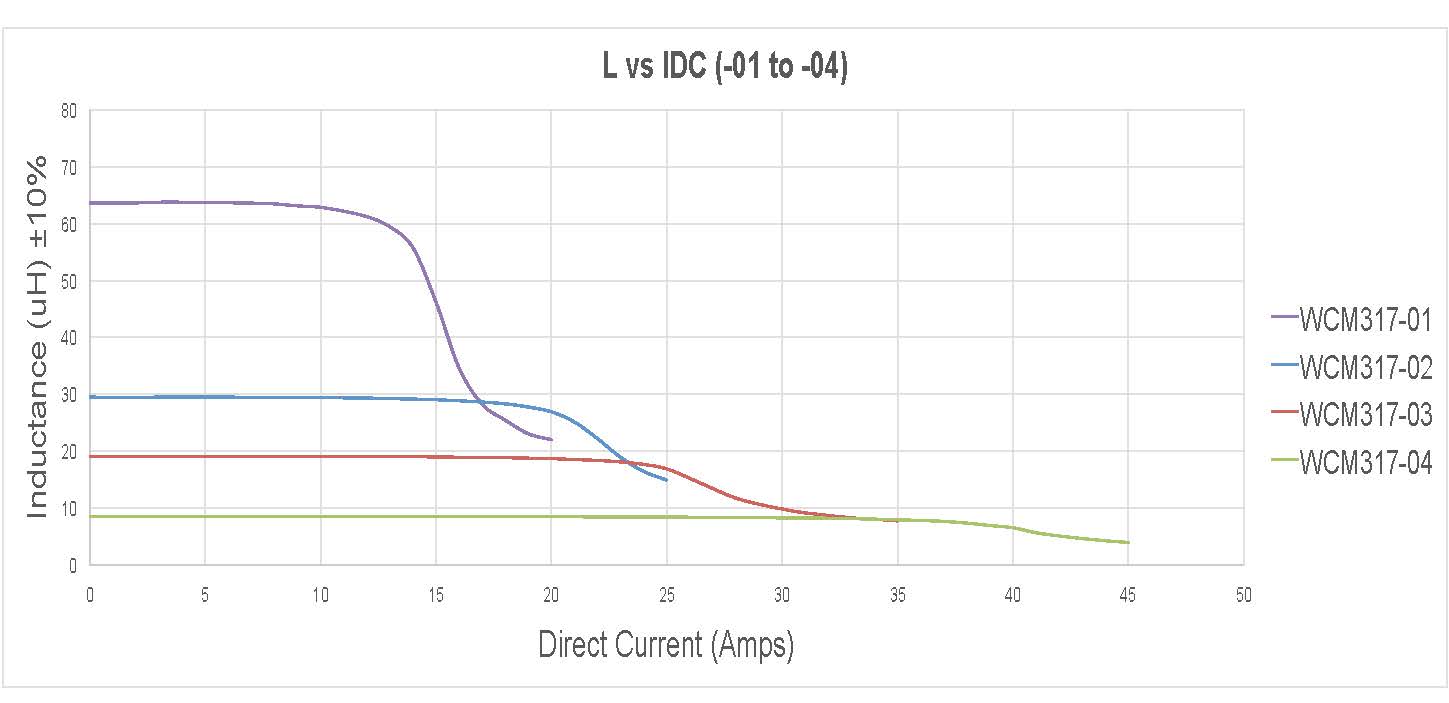

WCM317-01 to WCM317-04

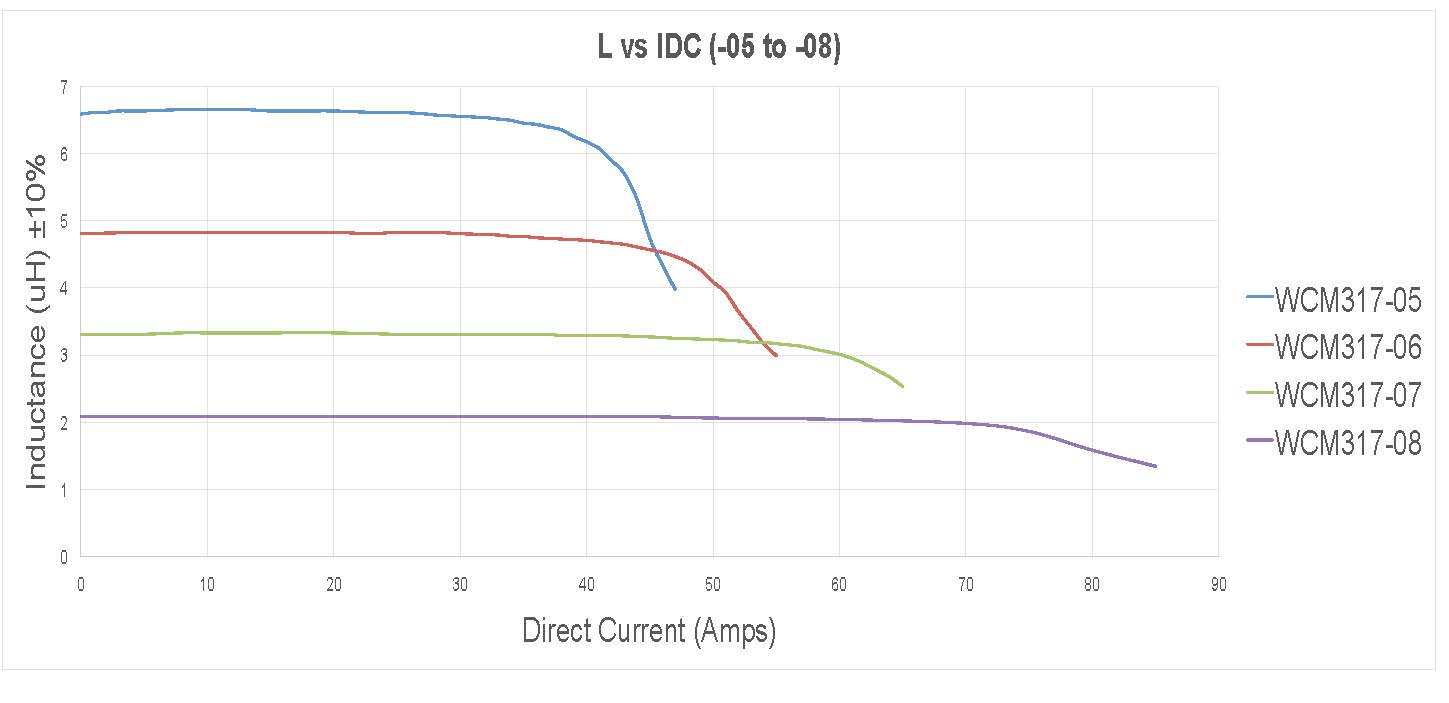

WCM317-05 to WCM317-08

Product Description

WCM317 series inductors are designed for use in buck boost (differential) circuits. Using an improved generation of Shaped Foil Technology, this inductor series has lower core and winding losses than competing products, especially at frequencies over 10 kHz and ripple current magnitudes of 5% and higher. The WCM317 series is an industry leading low cost, high performance inductor.

**patent pending on the winding technology used in this design.
