WCM601 Series Current Sense Transformer

WCM601 series current sense transformers are designed to accurately sense current at frequencies from 10 kHz to 600 kHz. They feature excellent linearity up to rated peak current. Compact size is optimized to minimize board space in two packaging configurations…through hole horizontal and through hole vertical mount.

GET A CUSTOM QUOTE
Download Product Sheet
Size Code Turns Inductance min.(millihenries) DCR (mΩ) V out (Volts) I in (Amps) Terminating Resistor (Ω) Hypot
WCM601-01 25 0.57 0.07 1 1 25 3000 VAC
WCM601-02 50 2.30 0.18 1 1 50 3000 VAC
WCM601-03 100 9.10 0.57 1 1 100 3000 VAC
WCM601-04 200 36.00 3.40 1 1 200 3000 VAC
WCM601-05 25 0.83 0.18 1 1 25 3000 VAC
WCM601-06 50 3.30 0.41 1 1 50 3000 VAC
WCM601-07 100 13.20 1.31 1 1 100 3000 VAC
WCM601-08 200 52.80 4.15 1 1 200 3000 VAC

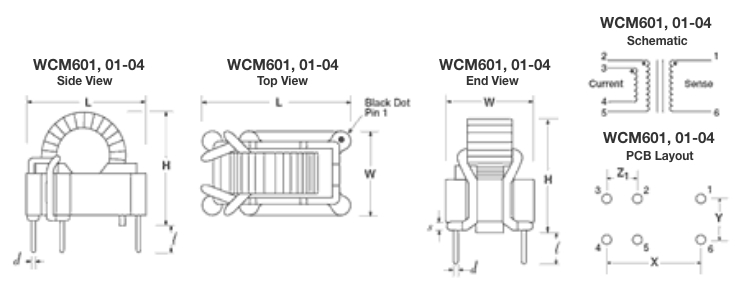

WCM601-01, WCM601-02, WCM601-03, WCM601-04

601schematica_sm

Size Code L W H s l d * X Y Z1 Z2
WCM601-01
WCM601-02
WCM601-03
WCM601-04		 .800/20.3 .450/11.4 .750/19.1 .080/2.0 .175/4.4 .025/.06 .700/17.8 .350/8.9 .200/5.1 NA

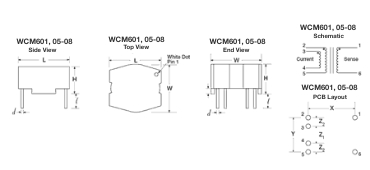

WCM601-05, WCM601-06, WCM601-07, WCM601-08

601schematicb_sm

Size Code L W H s l d * X Y Z1 Z2
WCM601-05
WCM601-06
WCM601-07
WCM601-08		 .680/17.3 .630/16.0 .360/9.1 .060/1.5 .191/4.9 .031/.79 .600/15.2 .400/10.2 .200/5.1 .100/2.5


Note:
* WCM601-01, WCM601-02, WCM601-03, WCM601-04 — .025″ square pin
* WCM601-05, WCM601-06, WCM601-07, WCM601-08 — .031″ round pin

Note: All materials of construction minimum Class B 130 degrees C rated.

Dimensions: Inches/mm

Size Code 50kHz 100kHz 200kHz 400kHz 600kHz
WCM601-01 — — 30 30 30
WCM601-02 — 30 30 30 —
WCM601-03 30 30 — — —
WCM601-04 30 — — — —
WCM601-05 — — 30 30 30
WCM601-06 — 30 30 30
WCM601-07 30 30 — — —
WCM601-08 30 — — — —

Notes:

  1. For reliable performance at peak rated sense current, the sense windings must be connected in parallel to split the load.
  2. For fully optimal performance, operate in recommended areas only. Within these ranges magnetizing current will be less than 1% of peak rated sense current and temperature rise will not exceed 40°C. Check with West Coast Magnetics for operation outside recommended areas.

Product Description

WCM601 series current sense transformers are designed to accurately sense current at frequencies from 10 kHz to 600 kHz. They feature excellent linearity up to rated peak current. Compact size is optimized to minimize board space in two packaging configurations…through hole horizontal and through hole vertical mount.
