SMD Common Mode Choke       (501 Series)

West Coast Magnetics’ 501 series common mode chokes are designed to attenuate common mode line noise in switching power supplies. These chokes provide a typical minumum 15 dB of attenuation from 100 kHz to 30 MHz. They are offered in two package styles. A low profile surface mount package is compatible with pick and place equipment. A larger through-hole package offers greater attenuation and is also compatible with pick and place equipment.

Part Number Minimum Inductance (µH) Rated DC Current(amps)
40° C Temp Rise
Rated DC Current(amps)
25° C Temp Rise
Max Leakage
Inductance (µH)
Max DCR (milliohms) Interwinding Isolation Vac Mount Style
501-01 1980 0.8 0.6 42.5 347 1500 Surface Mount
501-02 1267 1.0 0.8 27.8 180 1500 Surface Mount
501-03 636 1.4 1.1 14.3 82 1500 Surface Mount
501-04 431 2.0 1.5 10.2 43 1500 Surface Mount
501-05 220 2.8 2.2 5.7 20 1500 Surface Mount
501-06 141 4.0 3.1 3.9 10 1500 Surface Mount
501-07 79 5.7 4.4 2.6 5 1500 Surface Mount
501-08 2812 1.4 1.1 48.0 204 1500 Through Hole
501-09 2013 2.0 1.5 31.5 105 1500 Through Hole
501-10 1065 2.8 2.2 17.3 54 1500 Through Hole
501-11 599 4.0 3.1 12.0 25 1500 Through Hole
501-12 416 5.7 4.4 7.1 13 1500 Through Hole
501-13 204 8.1 6.3 4.1 6 1500 Through Hole
501-14 104 11.2 8.9 2.9 2 1500 Through Hole

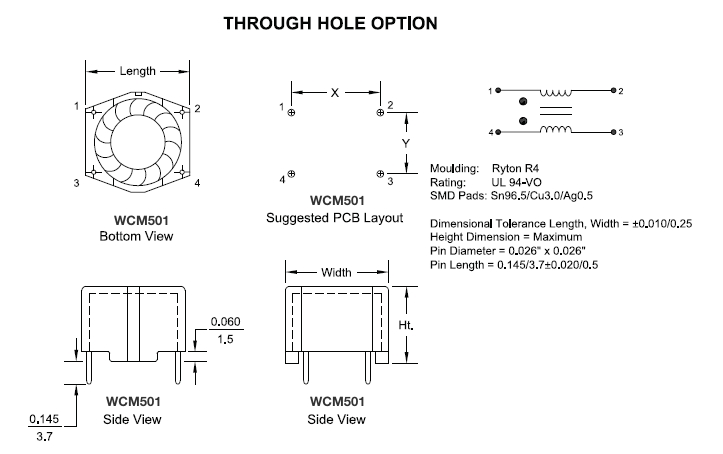

501thschematic501smschematic

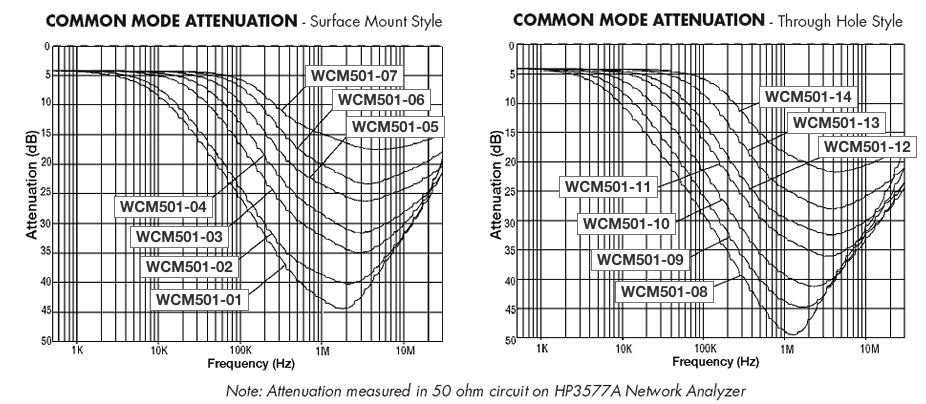

501graph
