2.5 KVA Noise Cut Transformer (901 Series)

WCM901 Series Noise Cut Transformer

WCM901 series noise cut transformer is designed to supply ultra clean 60 Hz power for your most demanding noise cut applications. This highly reliable product has been designed to meet the most stringent noise elimination requirements. The unit features a built in EMO (Emergency Machine Off) control circuit for machine safety interlocks. This proprietary circuit also features on/off state memory for power drop out immunity up to one second. The transformer is rack mounted with user specifi ed input and output cable lengths. West Coast Magnetics can modify this product to meet power requirements up to 5 KVA, to meet other input/output voltages and to operate at 50 Hz.

GET A CUSTOM QUOTE
Download Product Sheet
Temperature Range 0 degrees C to 100 degrees C
Power 2.5 kVA
Input Voltage 208/220 VAC single or 2 phase
Output Voltage 208/220 VAC single or 2 phase
Frequency 60 Hz
Case Size 18″ x 17″ x 7″ (L x W x H)
Full Clearance 20″ x 17″ x 7″ (L x W x H)
Weight 76 LB.
Input Cable 6 m length, 10/3 SOOW, pigtail end
Output Connector L6-20R (20A, 25V, female twist lock)


Meets or exceeds the following noise elimination specifications:

Frequency (MHz) Normal & Common Mode
1.0 -80dB
10.0 -55dB
100.0 -45dB
1000.0 -40dB


Note: All materials of construction minimum Class B 130 degrees C rated.

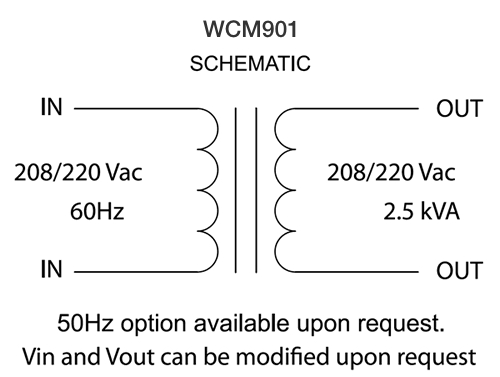

901schematic

Note: All materials of construction minimum Class B 130° C rated.

Product Description

WCM901 series noise cut transformer is designed to supply ultra clean 60 Hz power for your most demanding noise cut applications. This highly reliable product has been designed to meet the most stringent noise elimination requirements. The unit features a built in EMO (Emergency Machine Off) control circuit for machine safety interlocks. This proprietary circuit also features on/off state memory for power drop out immunity up to one second. The transformer is rack mounted with user specifi ed input and output cable lengths. West Coast Magnetics can modify this product to meet power requirements up to 5 KVA, to meet other input/output voltages and to operate at 50 Hz.
